Rear TIG 4130 Stock Length Shackles

Looking for the best? Our Camburg TIG shackles replace the stock light-duty version your 2017-2020 Raptor or F-150 2015-2020 is equipped with from the factory. The stock shackles are stamped out of thin metal and use a rubber bushing which both allow for a flexy component that also binds as it cycles since the rubber bushings are vulcanized into the shackle.

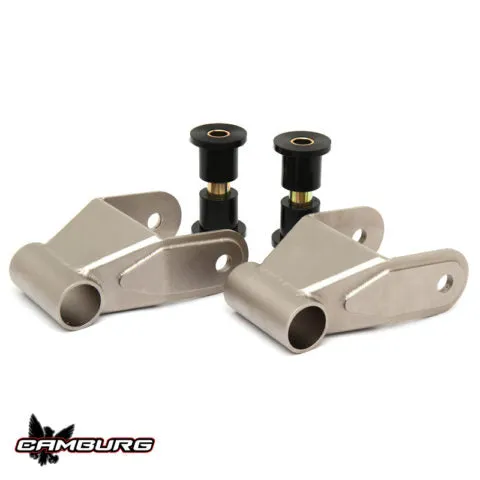

Our TIG shackles are a fabricated boxed gusseted design from 4130 chromoly that is much stronger than mild steel and use polyurethane bushings that pivot smoother with less flex. We TIG weld them, bead blast the surfaces then powder coat them a textured gray to match our billet arms and the FOX shock hard anodize. They are ready to be bolted on using the factory hardware. These are available in a stock length, so they do not raise or lower the ride height or an 1.5" extended version that will lower the ride height about 1". Both are designed for stock and Deaver leaf springs, the "stock length" versions do not work with icon leaf springs.

• CAD Designed, CNC Laser Cut & Formed
• TIG welded 4130 chromoly
• Stock length
• Smoother action and less deflection
• Textured Gray Powder Coated
• Polyurethane Bushings
• Weight: 10 lbs.
• Dimensions: 10 x 8 x 4 in
• Made in the USA

The stock length shackles are 4.5" eye to eye and the extended are 6".

INCLUDES

• 1 Pair of Shackles
• Poly Bushings & Sleeves
• Bushing Grease Packets
